Morningstar Tristar TS-45, 45A, 12-48V, PWM

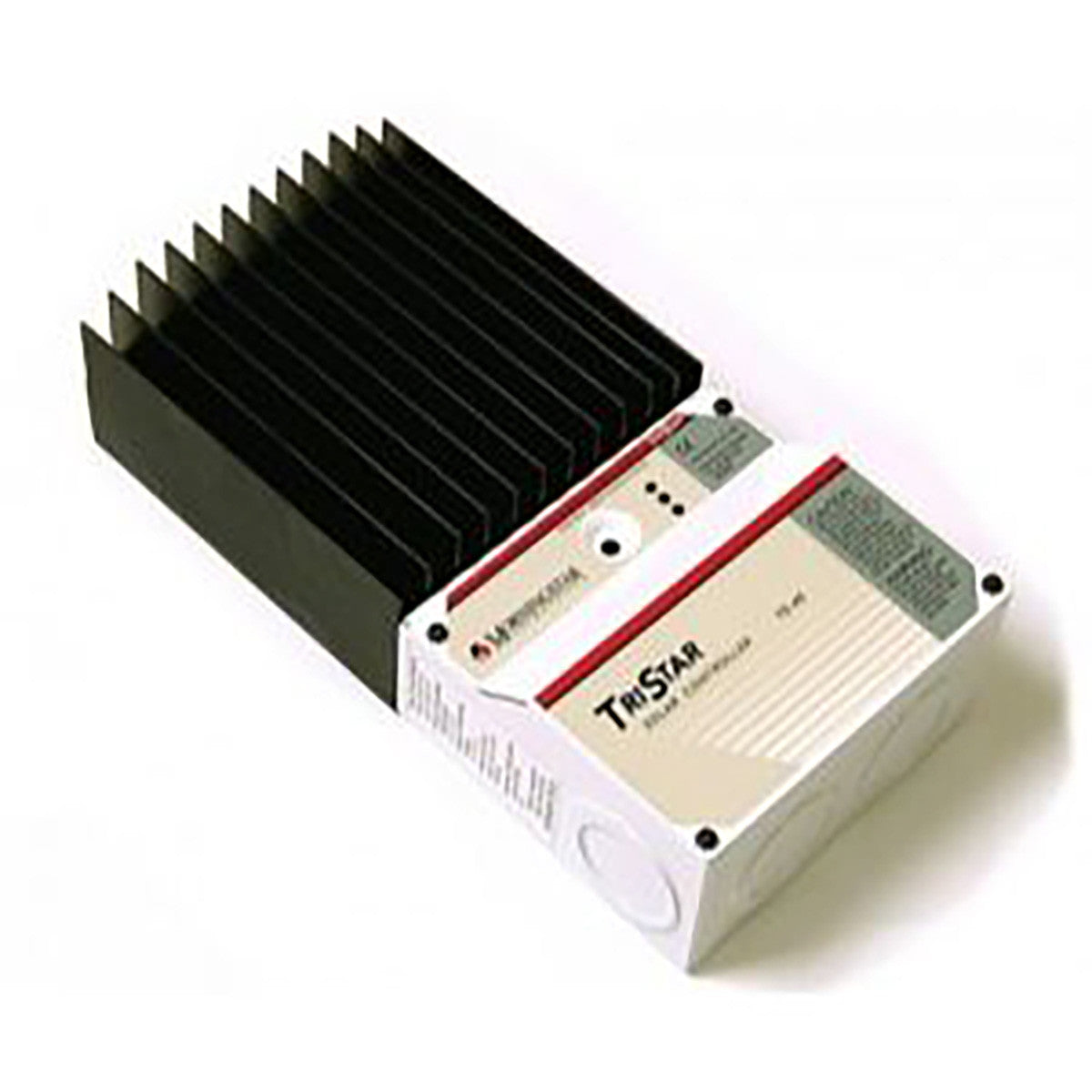

Morningstar’s TriStar™ is a three-function PWM controller for larger systems, providing reliable PWM solar battery charging or load control or diversion regulation. The controller operates in one of these modes at a time and two or more controllers may be used to provide multiple functions. The TriStar uses advanced technology and automated production to provide exciting new features at a competitive cost to regulate battery charging in home systems and professional applications.

Key Features

• Built for reliability and performance, with an oversized heatsink and overspec’d components. Fully-rated for operation at temperatures up to 45C.
• More information with LED indicators. Optional meter displays extensive system and controller information in five languages; automatic self-test and reset.
• Communications capability with RS-232 port, connects to a PC for custom settings, data logging, remote monitoring and control.
• SNMP monitoring supported when used with Ethernet MeterBus Converter so you can view system current, voltages, and alerts in your network management system.
• Fully adjustable with DIP switches for seven digital presets. Additional custom setting via RS-232.
• Extensive electronic protection against reverse polarity, short circuits, overcurrent and excessive temperature.
• Low telecom noise. DIP switch setting will change PWM to “On-Off” battery charging.
• Fanless design for long-term reliability.

Applications

• Lighting
• Residential
• Rural Electrification
• RV-Caravan and Marine
• Security and Surveillance
• Telecom
