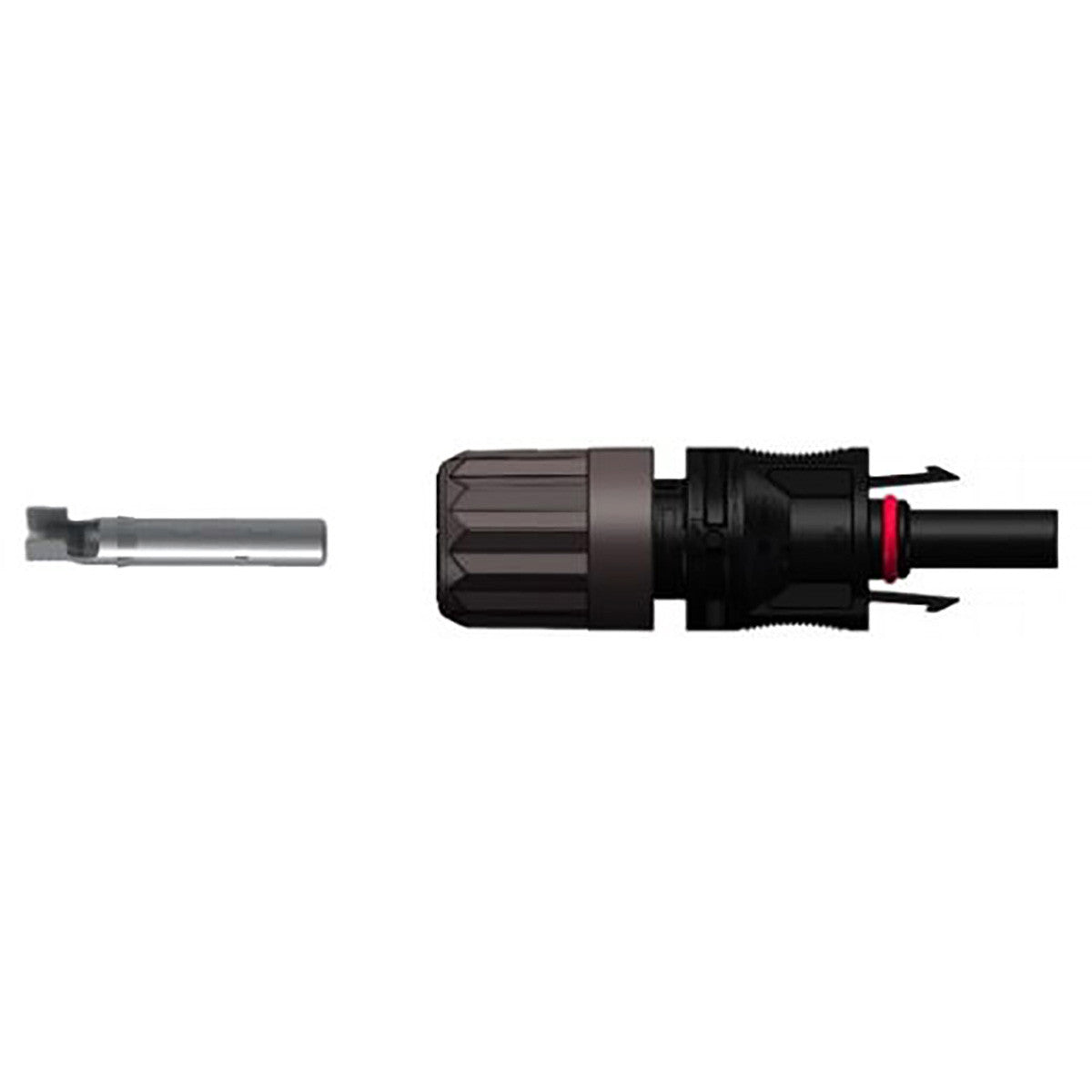

Canadian Solar T4-PC-1 Female Connector, 10AWG-12AWG

Canadian Solar T4-PC-1 Female Connector 10AWG-12AWG

T4 connectors use high quality materials that guarantee long-term reliability. Lower contact resistance and higher current transfer capability ensure high product efficiency.

T4 connectors have IP68 water-proof rating and can be used in a wide operating temperature range from -40°C to 90°C.

CERTIFICATIONS

• UL 6703: CSA
• IEC 62852: TÜV-SÜD
• RoHS, REACH, NEC, PAHS and Halogen-free compliant

MECHANICAL DATA

• Rated Voltage: IEC 1500 VDC & UL1500 VDC
• Rated Current: 32 A for 4 mm²/6 mm² // 12 AWG/10 AWG
• Contact Resistance: ≤ 0.25 mΩ
• Protection Degree: IP68 (when mated)
• Fire Resistance: UL 94-V0
• Temperature Range: - 40 °C ～ + 90 °C
• Rated Impulse Voltage: 16 kV

ELECTRICAL DATA

• Conductor Cross Section: IEC: 4 mm² / 6mm²; UL:10AWG/12AWG
• Connector System: Φ 4.0 mm
• Contact Material: Copper, Tin-plated
