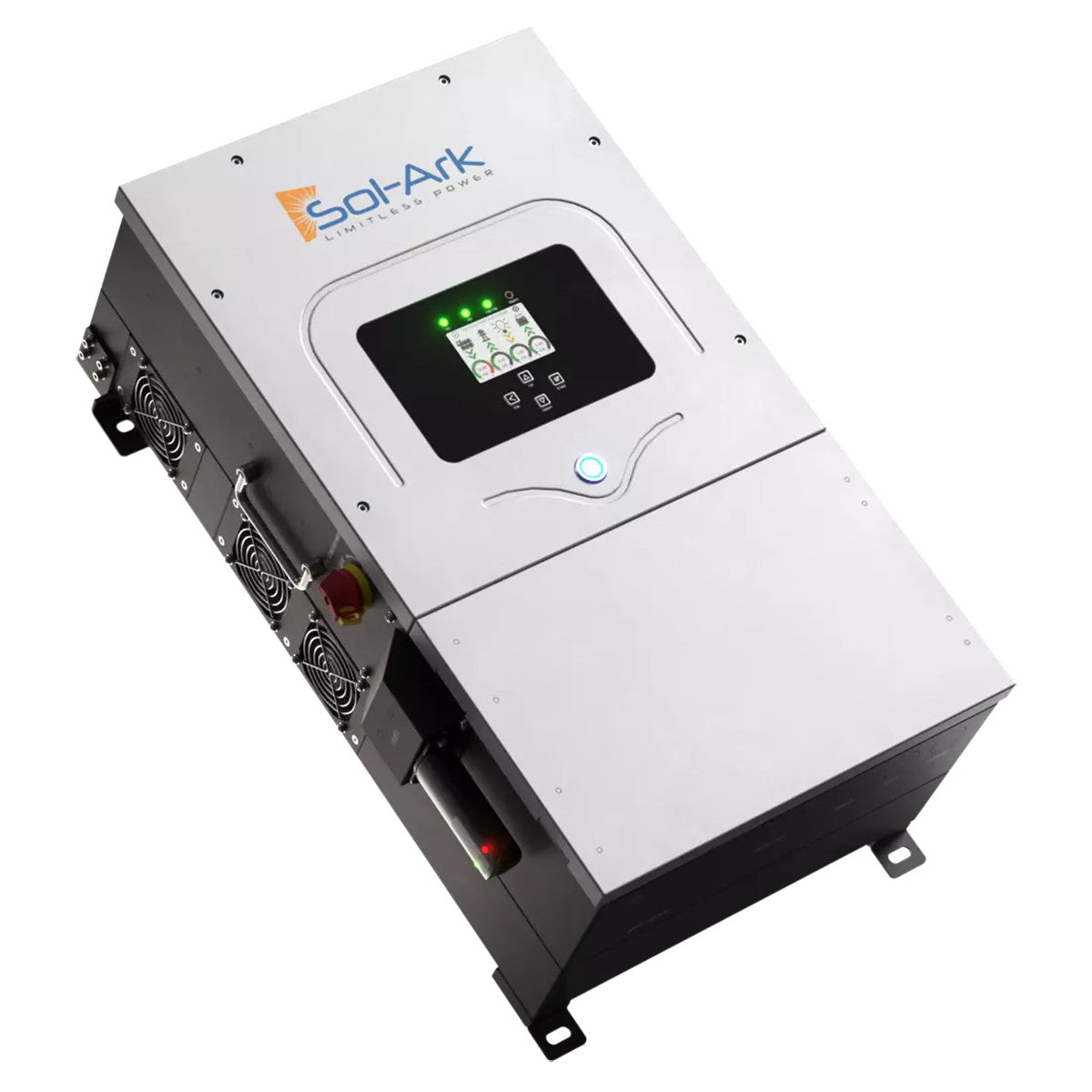

Sol-Ark 15K Hybrid All-In-One

BATTERY AGNOSTIC

• LEAD ACID or LI-ION battery chemistry support.
• Any battery with nominal DC voltage of 48V.
• 275A continuous battery charging output.
• 3-Stage charging curve with equalization.
• Close loop communication with most high-end lithium batteries.

19.5KW SOLAR INPUT POWER

• x3 built-in MPPT for max DC coupled power of 19.5KW
• Max AC coupled solar input of 19.2KW
• Max combined solar input of 38.4KW

15KW OUTPUT POWER OFF-GRID

• Continuous AC power of 15KW with PV
• Continuous AC power of 12KW from batteries only
• Max grid sell output of 34.2KW
• Supports 120V,240V, and 208V connections

FULL GENERATOR COMPATIBILITY

• Supports 220V, 240V, and 208V generators on grid breaker
• Up to 24KW generators on GEN breaker
• Standby generator connection for whole-home backup
• Two wire for automatic generator start only
