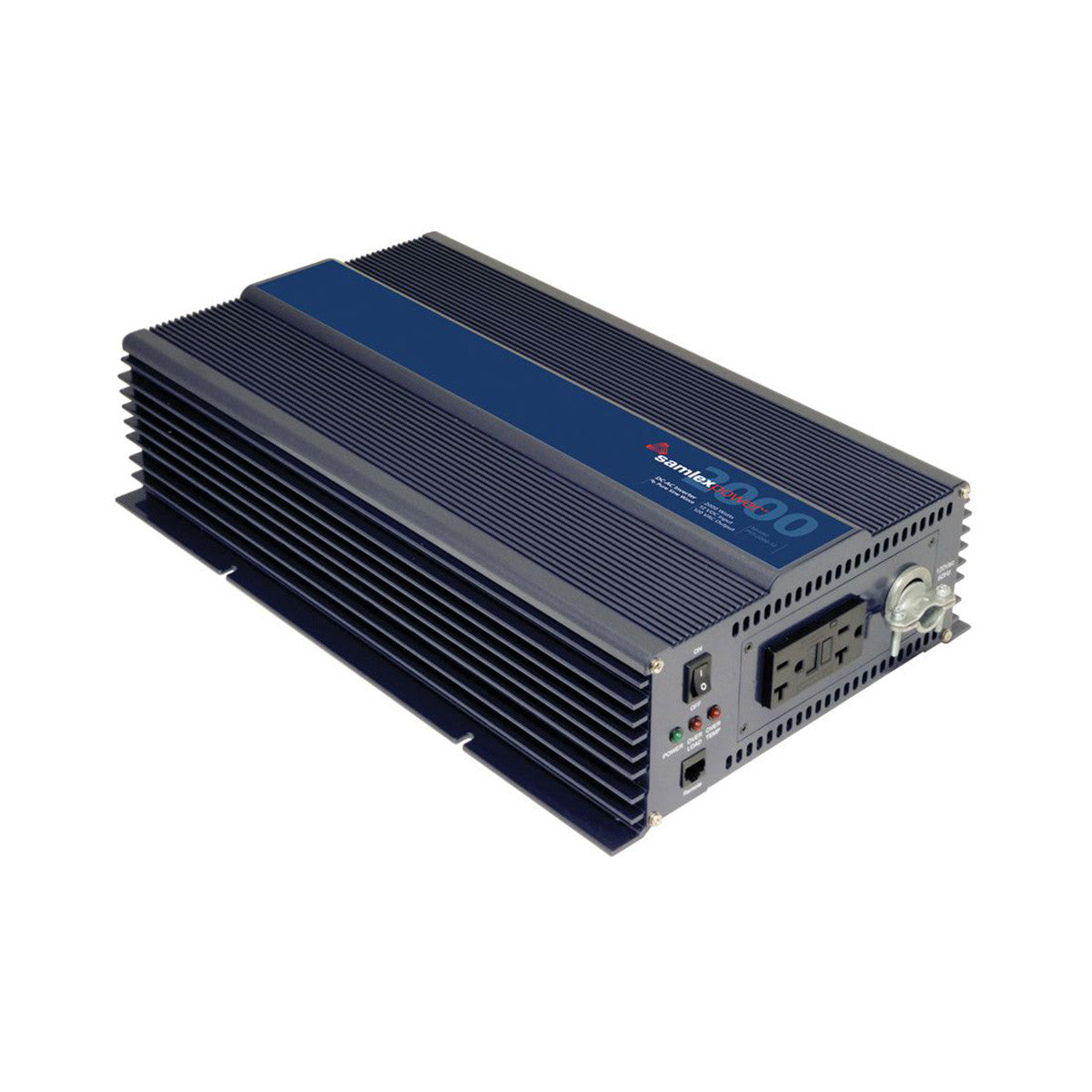

PST-2000-24 Pure Sine Inverter Samlex

This high efficiency DC-AC inverter converts 24 Volts DC to 2000 Watts of pure sine-wave AC power at 120 Volts, 60 Hz. The unit comes with pin-type battery cable lugs. Features include overload protection, low battery alarm / shut down, low idle power draw of less than 1 Amp. AC power is available from a NEMA-20R GFCI duplex outlet on the front panel. Safety certified to UL standards.

Optional remote control (sold separately): Model RC-300

Warranty

3 Year Limited Warranty

Features

• High efficiency
• Can be hard wired
• Temperature controlled cooling fan – reduces energy consumption
• Low interference
• Wide operating DC input range: 21.4 – 33.0 VDC
• Commercial grade design suitable for heavy duty loads, long periods of continuous operation & for emergency back up
• UPC – Universal Protection Circuit: low voltage, over voltage, over temperature, over load and short circuit
• Low idle power draw
• Dual GFCI protected AC outlets
• Safety certified to UL standards, FCC compliant
• Remote Input – Turn inverter ON or OFF with ignition start or any other Remote ON/OFF switch

Specifications

• Input: 24 VDC
• Output: 120 VAC
• Watts: 2000 Watts
• Surge: 3500 Watts
• Weight: 15.6 (lbs)
• Dimensions: 10.35 x 18.43 x 4.16 (in)
• Safety: ETL to UL Standard

Applications

• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers
