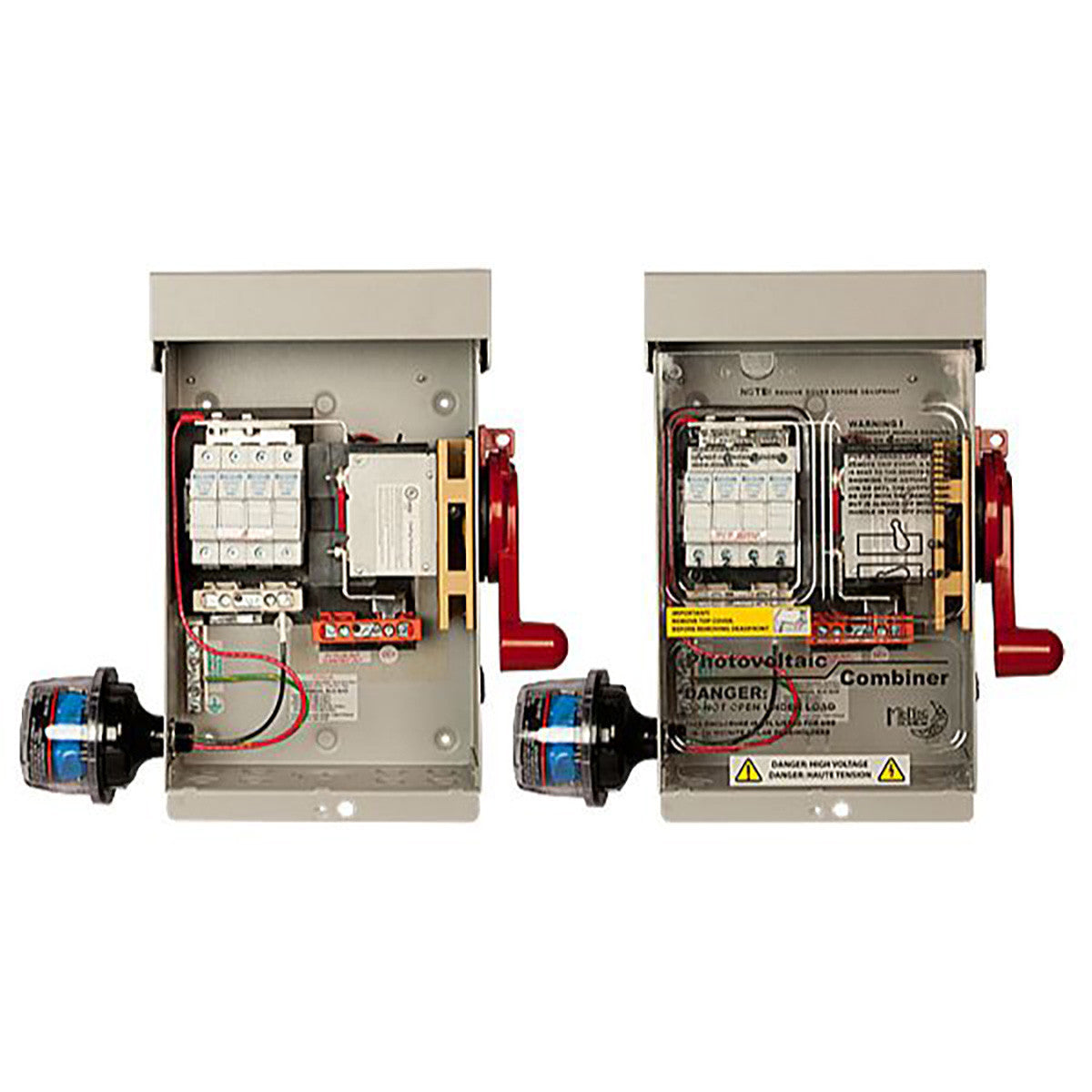

MidNite Solar MNPV4HV-DISCO 3R-DLX, 4 Pos. comb w/Disco, fuses, and SPD 3R lockable

MNPV4HV-DISCO 3R-DLX MidNite Solar 4 Pos. comb w/Disco, fuses, and SPD 3R lockable

MNPV4HV-DISCO 3R-DLX Disconnecting Combiner has 80 amp busbars, 100 amp load break rated switch and a third pole which is the feedback micro switch, 600 volt max.

The MNPV4HV-DISCO 3R-DLX's red handle is LOCKABLE IN THE OFF POSITION!

• Type 3R aluminum enclosure (no rust, won't turn to dust)
• 90o C terminals
• See thru deadfront & color coded busbar guards included
• Current Rating - 80A
• Output Circuits - 1
• Max. Output Wire Size - 1/0
• Load Break Rated
• Four Fuseholders (MNTS) installed.
• Four 15a/600v fuses installed
• Warranty - 5 yrs.
• Listed by ETL for US
• Made in the USA

Hardware Includes:

• Four 1/2 inch strain reliefs with locknuts (MNSR-1000)
• One 10-32 X 7/8" BOLT and locknut
• One TERMINAL PIN 18-22 AWG.
• One TERMINAL PIN 10-12 AWG.
• One RING TERMINAL 10-12 AWG.
• One BLUE WRENCH
• One MNSPD-600 (Surge Protection Device)
