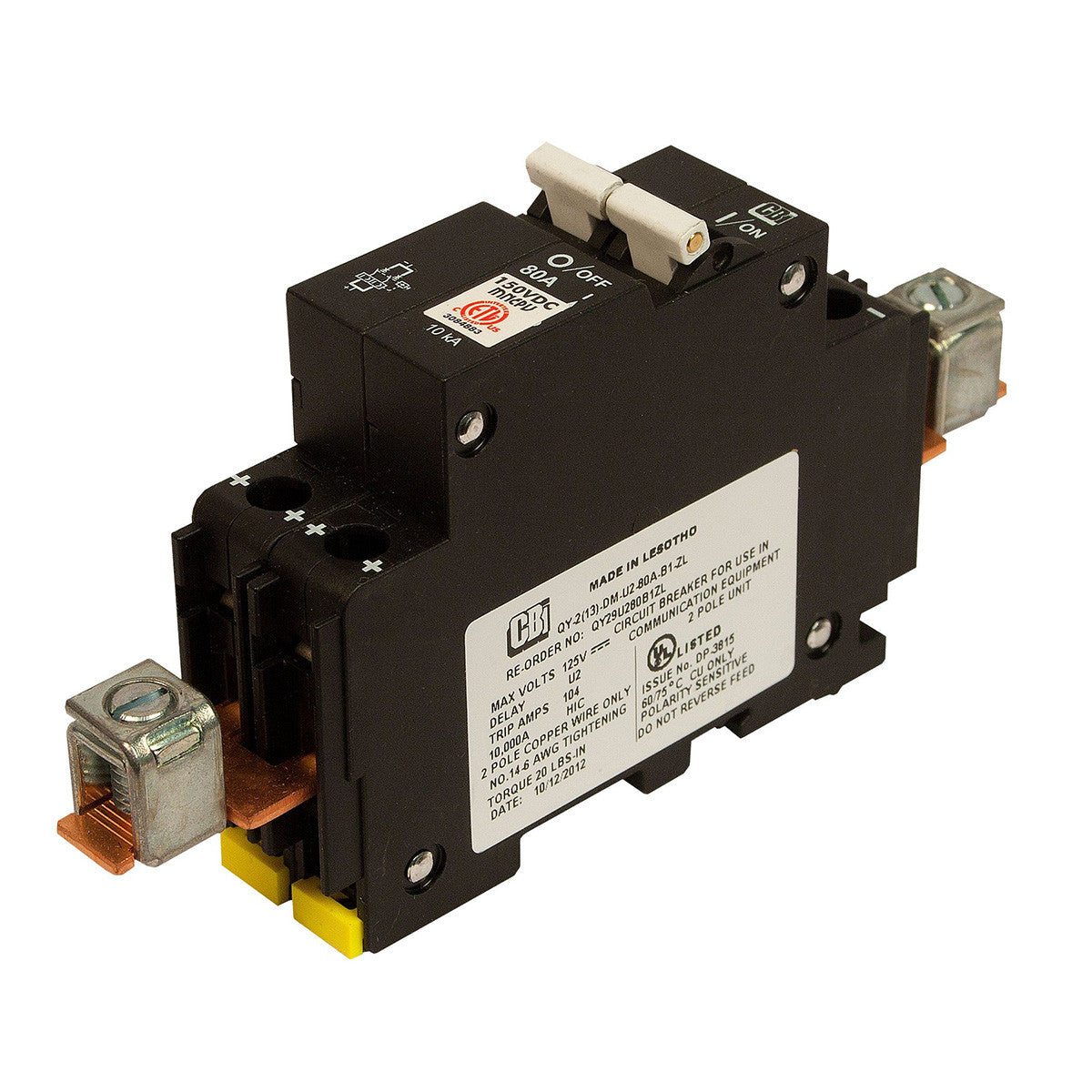

MidNite Solar MNEPV80, 80A, 150VDC Breaker

MidNite Solar DIN mount 80A 150VDC breaker

MidNite's breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.

Features

• DC Circuit Breaker
• Hydraulic-Magnetic technology
• 100% rating capability, independent of ambient temperature
• VDE and CCC approved, CE certified
• UL listed (UL 489 A)
• Ratings 0.1 to 63 A (1 & 2 pole), 3 pole parallel (150 A maximum), 4 pole parallel (200 A maximum)
• Optional Auxiliary Switch / Trip Alarm - factory fitted (6.5 mm wide)
• Optional Shunt Trip (no approvals)
• Wide range of time delays and operating currents
• Precision tripping characteristics
• Ultra compact – 13 mm wide module
• Trip indication with mid-trip handle
• Reset immediately after overload
• DIN mount product in grey shells
• Dual mount product in black shells
• 80 V DC devices are reverse feedable
• 125 / 250 / 600 V DC devices are polarity sensitive
• Suitable to use for electrical isolation

Application

• DC branch circuit protection (UL 489A, IEC / EN 60947-2)
• Telecom / datacom equipment
• UPS equipment
• Alternative energy equipment
• Battery protection & switching
• Telecommunication DC power
