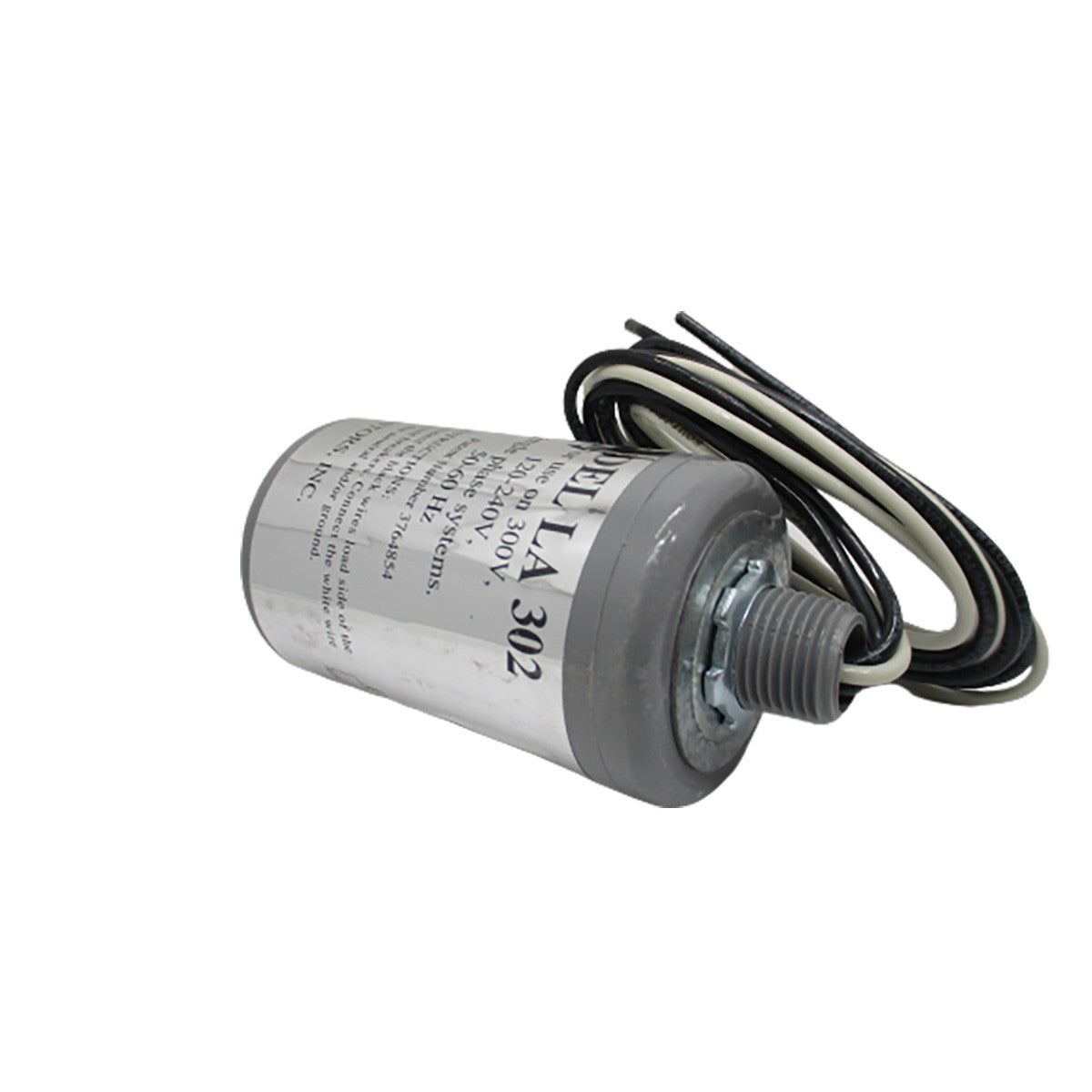

Delta LA302, 3Wire, 1phase, 0-300VAC

Rapid Response, High Current Delta Surge/Lightning Arrestors/Suppressors Help Prevent Damage to Electronic Equipment.

300 Series Specifications

• Type of design: Silicon Oxide Varistor
• Maximum current: 100,000 amps
• Maximum energy: 3,000 joules per pole
• Maximum number of surges: Unlimited
• Response time one milliamp test: 5 nanoseconds
• Response time to clamp 10,000 amps: 10 nanoseconds
• Response time to clamp 50,000 amps: 25 nanoseconds
• Leak current at double the rated voltage: none
• Leads: 36" #12 THHN
• Case material: PVC
• Locknut and Washer furnished

Lightning Arrestor Simple Installation

• Fasten the arrestor to the service entrance equipment.
• Connect the black wires to the lines below the main disconnect.
• Connect the white wire to the grounded neutral bus.
