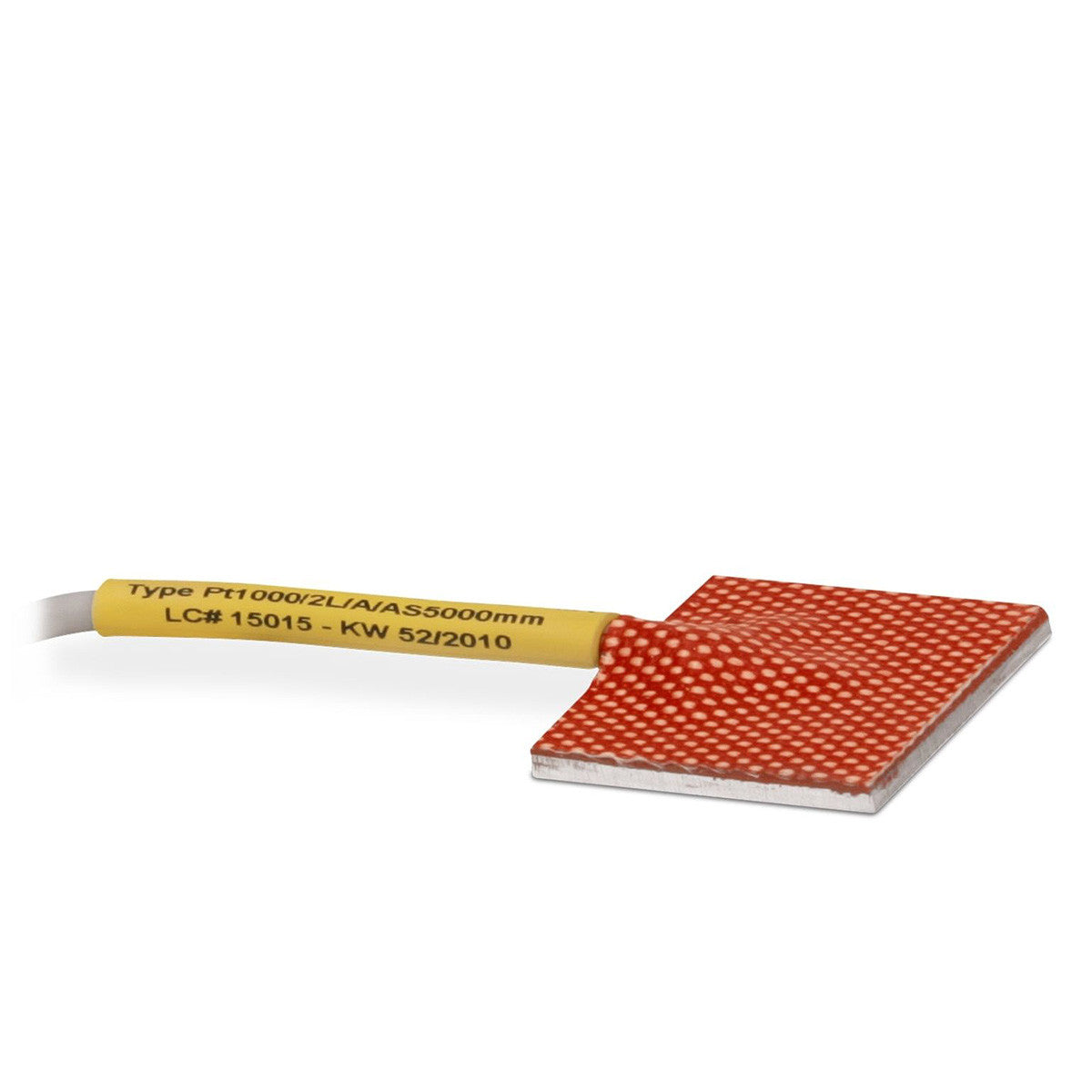

Fronius Module Temp Sensor

Integrating sensors into a PV system enables additional measured values, such as irradiation and ambient temperature, to mention just a couple, to be recorded.

Manufacturer Part Number: 4.300.011.190
Shipping Weight: 0.5 lbs.
Shipping Dimensions: 4 x 4 x 4 in
Sensor: PT1000
Measuring range: -20°C - +150°C
Tolerance: ±0.8°C (from -20°C to +100°C)
Design: Self-adhesive sensor for measurements on surfaces, two-wire technology
Width: 50 mm
Length: 100 mm
Connection cable: 3 m Cu cable, silicone-insulated, exposed ends, ferrules, UV-resistant
Max. cable length (distance: Sensor Card/Box to sensor): 20 m
