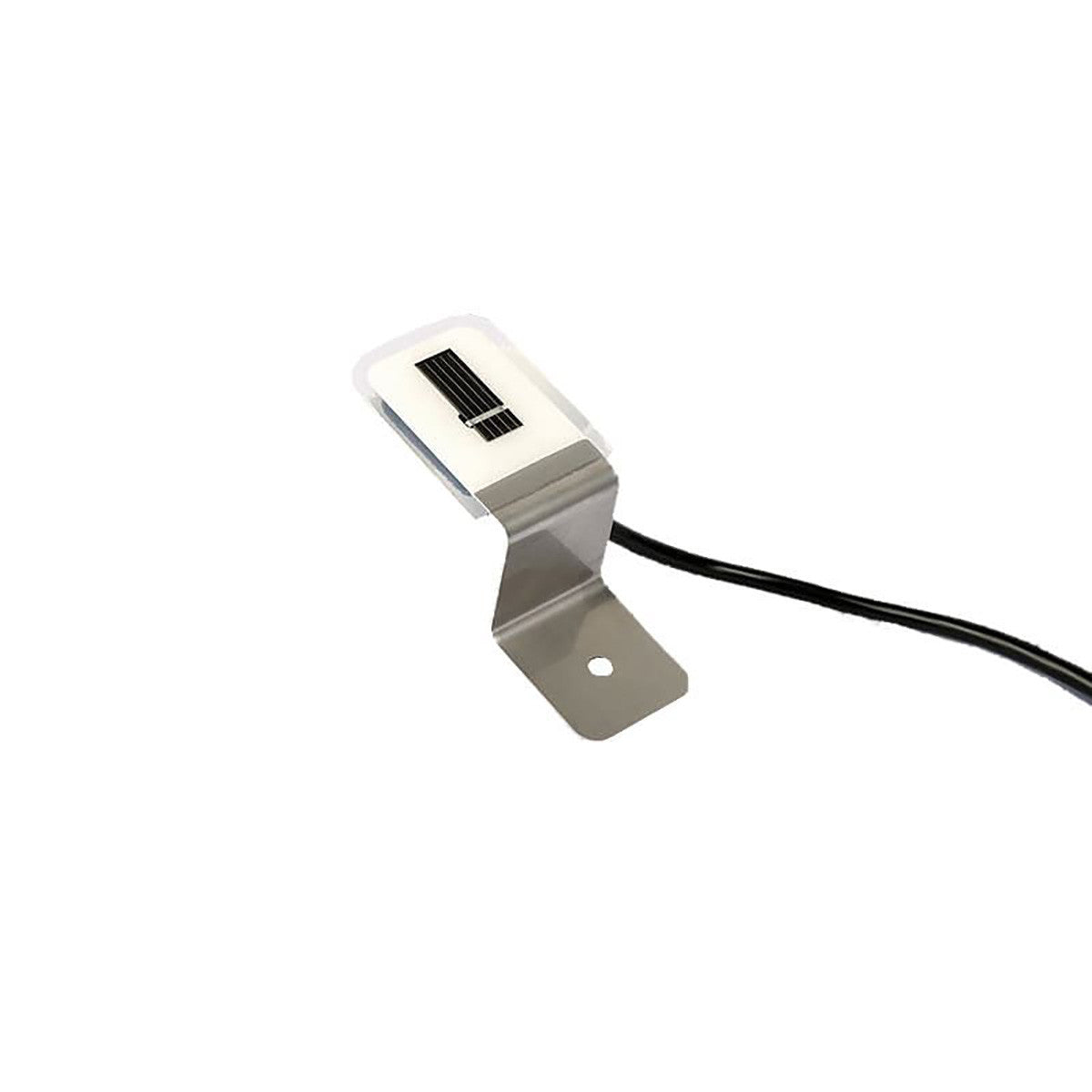

Fronius Insolution IG Sensor

Manufacturer Part Number: 4.300.011.189
Shipping Weight: 0.5 lbs.
Shipping Dimensions: 4 x 4 x 4 in
Sensor: Monocrystalline Si sensor
Measuring voltage: approx. 70 mV at 1,000 W/m² (exact calibration value is printed on the sensor)
Tolerance: ±5% annual average
Permissible ambient temperature: -40°C - +85°C
Design: Weather-proof design on Z-shaped aluminium profile
Height: 40 mm
Width: 40 mm
Length: 110 mm
Connection cable: 3 m Cu cable, silicone-insulated, exposed ends, ferrules, UV-resistant
Max. cable length (distance: Sensor Card/Box to sensor): 30 m
