EZ Solar JB-2 PV Junction Box, Tile Roofs with Deck Flashing

PV Junction Box for Tile Roofs with Deck Flashing

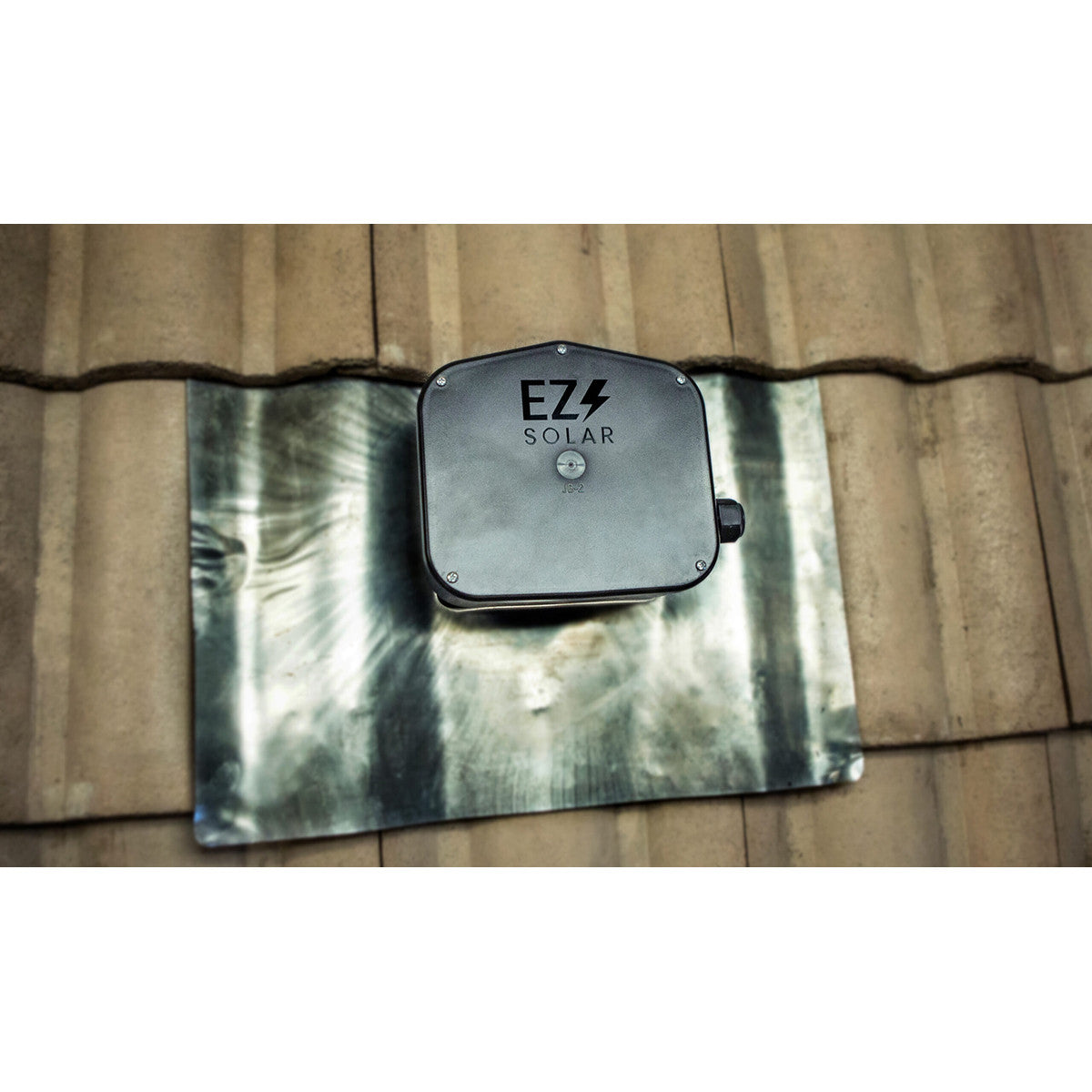

The JB-2 integrates with most Flat, Spanish and W-Shaped tiles.

• No Leaking
• Revolutionary Din Rail Positioning
• Fast and easy installation

Product Specifications and Ratings

• Maximum Voltage: 1,000 Volts
• Maximum Current: 120 Amps
• Allowable Wire: 14 AWG – 6 AWG
• Spacing: Please maintain a spacing of at least ½” between uninsulated live parts and fittings for conduit, armored cable, and uninsulated live parts of opposite polarity.
• Enclosure Rating: Type 3R
• Roof Slope Range: 2.5 – 12:12
• Max Side Wall Fitting Size: 1”
• Max Floor Pass-Through Fitting Size: 1”
• Ambient Operating Conditions: (-35°C) - (+75°C)
• Compliance:
  • UL1741, CSA C22.2 No. 290
  • Approved wire connectors: must conform to UL1741, CSA C22.2 No. 290
• System Marking: Interek Symbol and File #5015705
• Periodic Re-inspections: If re-inspections yield loose components, loose fasteners, or any corrosion between components, components that are found to be affected are to be replaced immediately
